Hayward Powerline PL Sand Filter Group – 81069 | 5 m³/h, 0.25 HP Pump, Ø 350 mm Filter

Product code: 81069

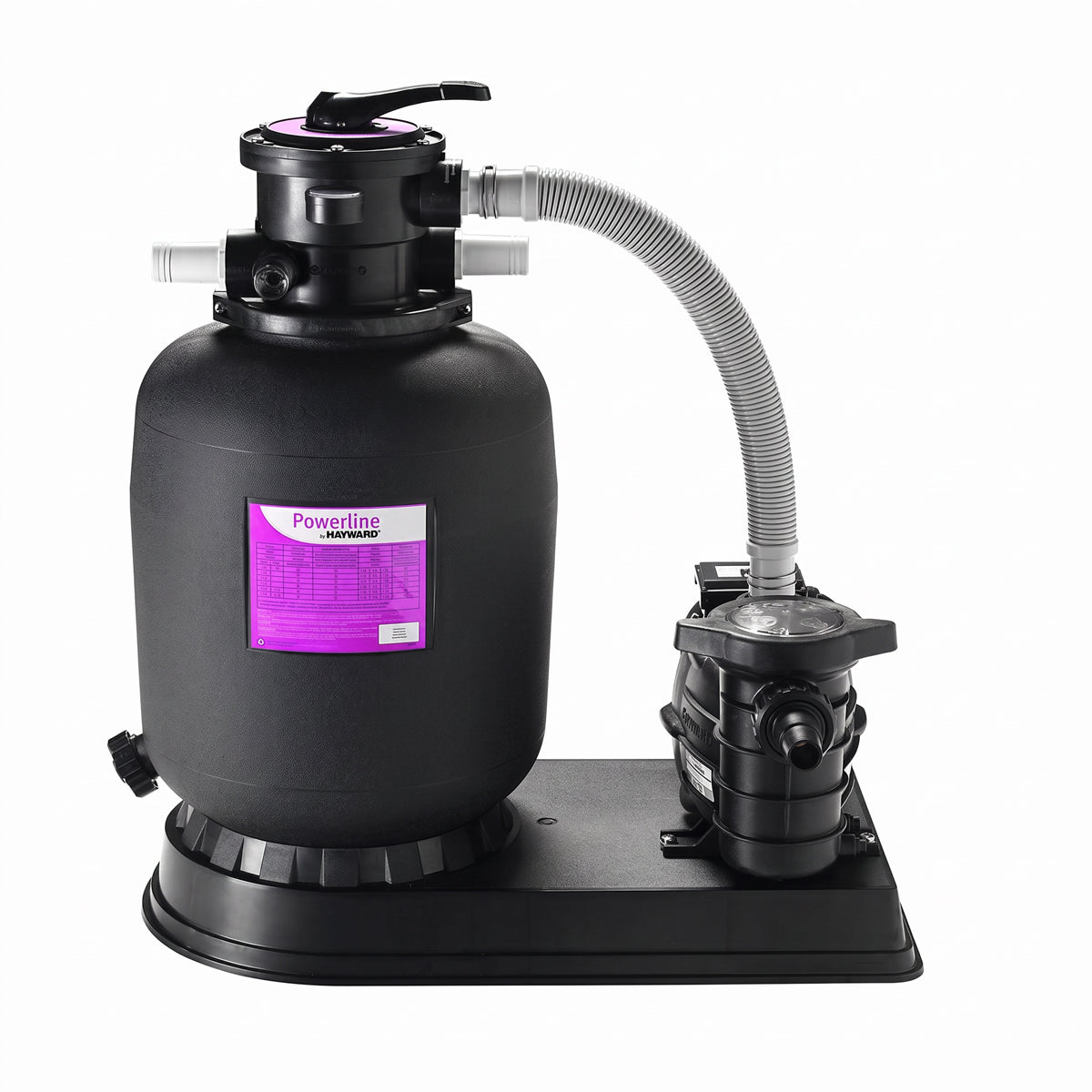

The Hayward Powerline PL 81069 filter group is a monoblock system for above-ground and in-ground pools that combines pump and sand filter on a single base. A compact solution for water circulation and filtration, with matched components and a top-mounted selector valve.

Indicative sizing: for pools up to around 20 m³ (20,000 liters), considering a theoretical 4-hour turnover at the nominal flow rate. Suitability must be verified based on piping, distance and height difference relative to the pool and connected equipment, which can reduce actual flow.

This version provides a nominal flow rate of 5 m³/h and pairs a 0.25 HP pump with a 350 mm diameter filter, with a planned charge of 25 kg of filter sand.

Sand is not included and must be purchased separately.

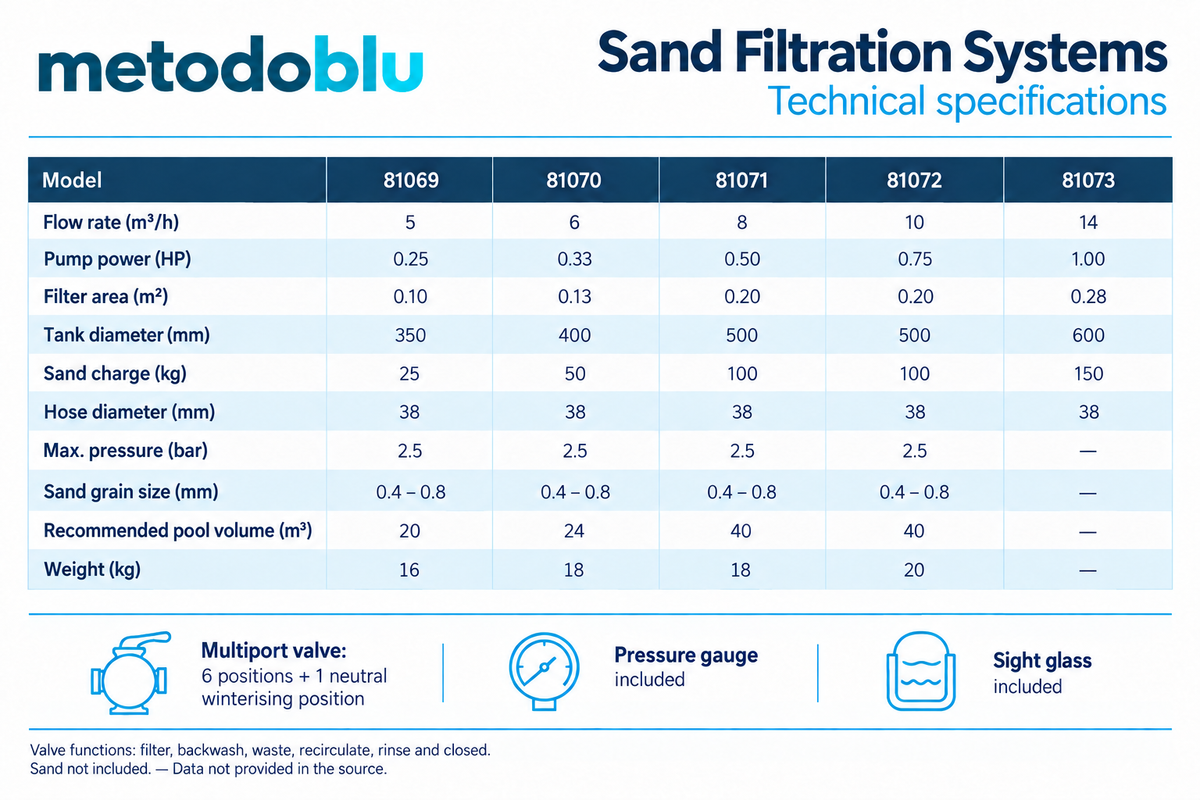

Technical specifications

• Brand: Hayward.
• Range: Powerline PL.
• Product code: 81069.
• Nominal flow rate: 5 m³/h, equivalent to 5,000 liters/hour.
• Indicative pool volume: up to around 20 m³ (4-hour turnover).
• Pool type: above-ground and in-ground.
• Pump power: 0.25 HP.
• Filter diameter: 350 mm.
• Filtration area: 0.10 m².
• Sand charge: 25 kg, not included.
• Sand grain size: 0.4–0.8 mm.
• Pump prefilter: integrated, 1.1-liter capacity.

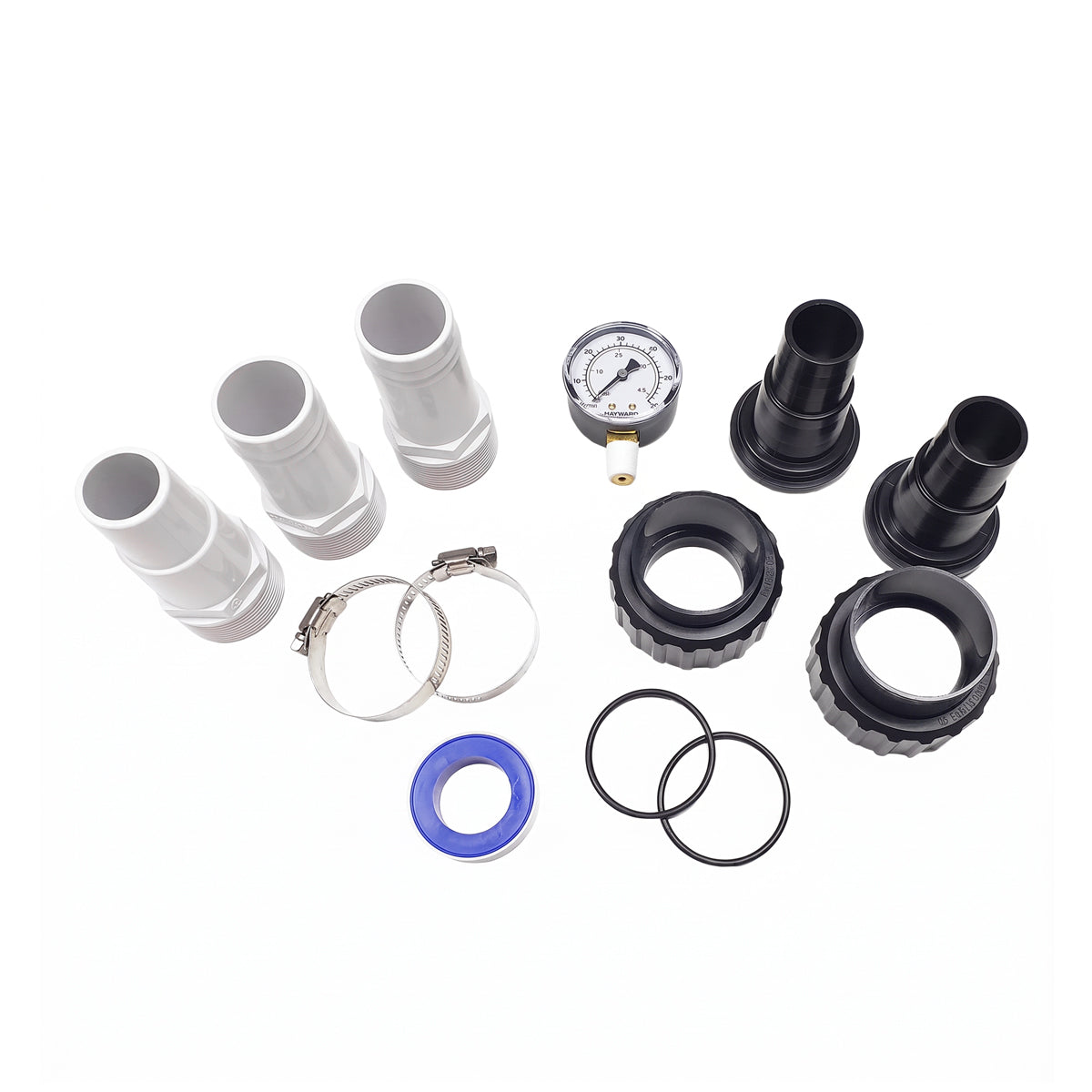

• Connections: 1½" with fittings for 38 mm hoses.
• Top valve: VARI-FLO™ with 6 functions, plus neutral winterizing position.
• Control: pressure gauge and sight glass.

Sand filtration and integrated prefilter

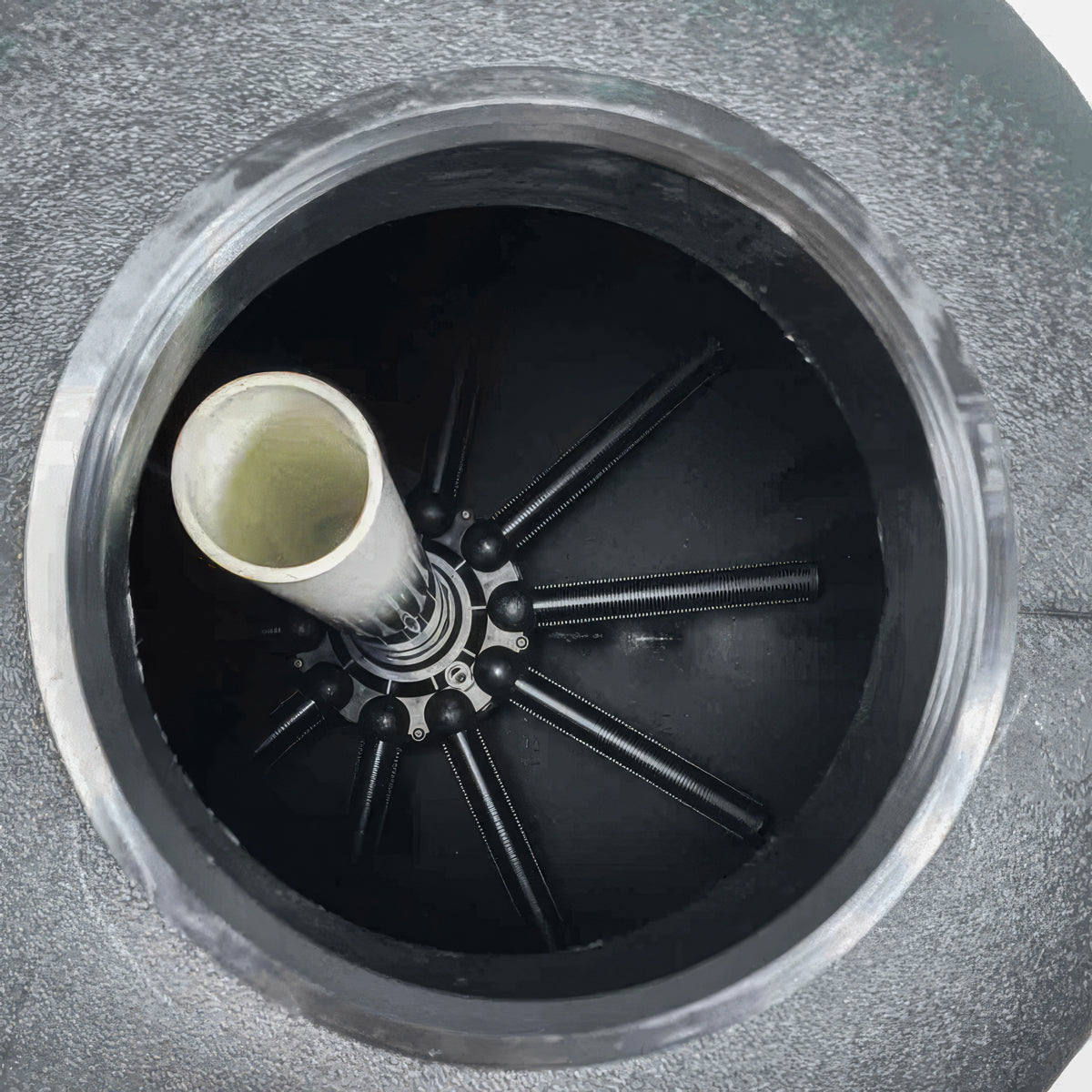

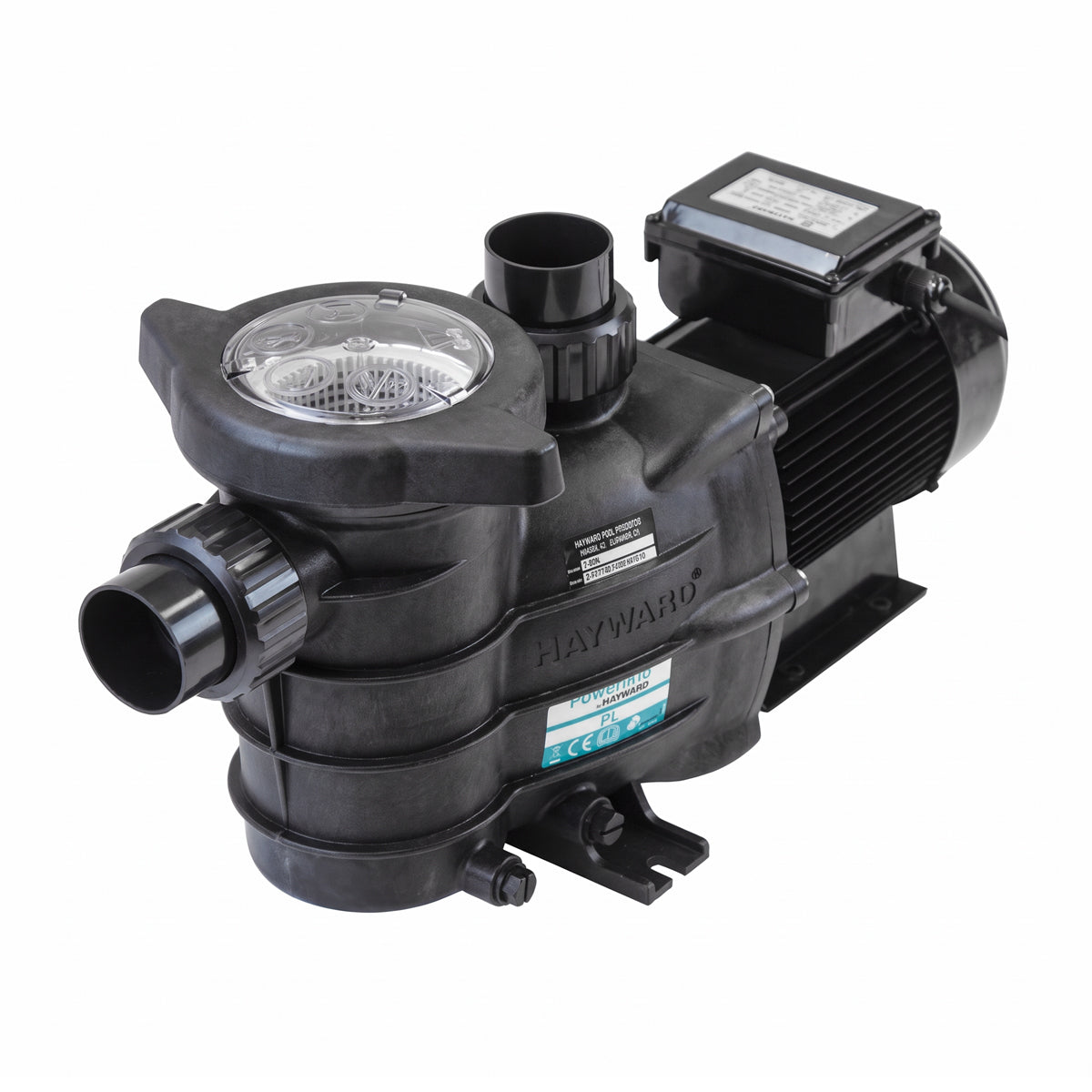

The pump directs water into the filter, where the sand bed traps suspended impurities before returning to the pool. The 1.1-liter prefilter intercepts larger debris and helps protect the pump.

The clear quick-open lid lets you check the basket and makes routine cleaning easier.

Multiport valve and maintenance

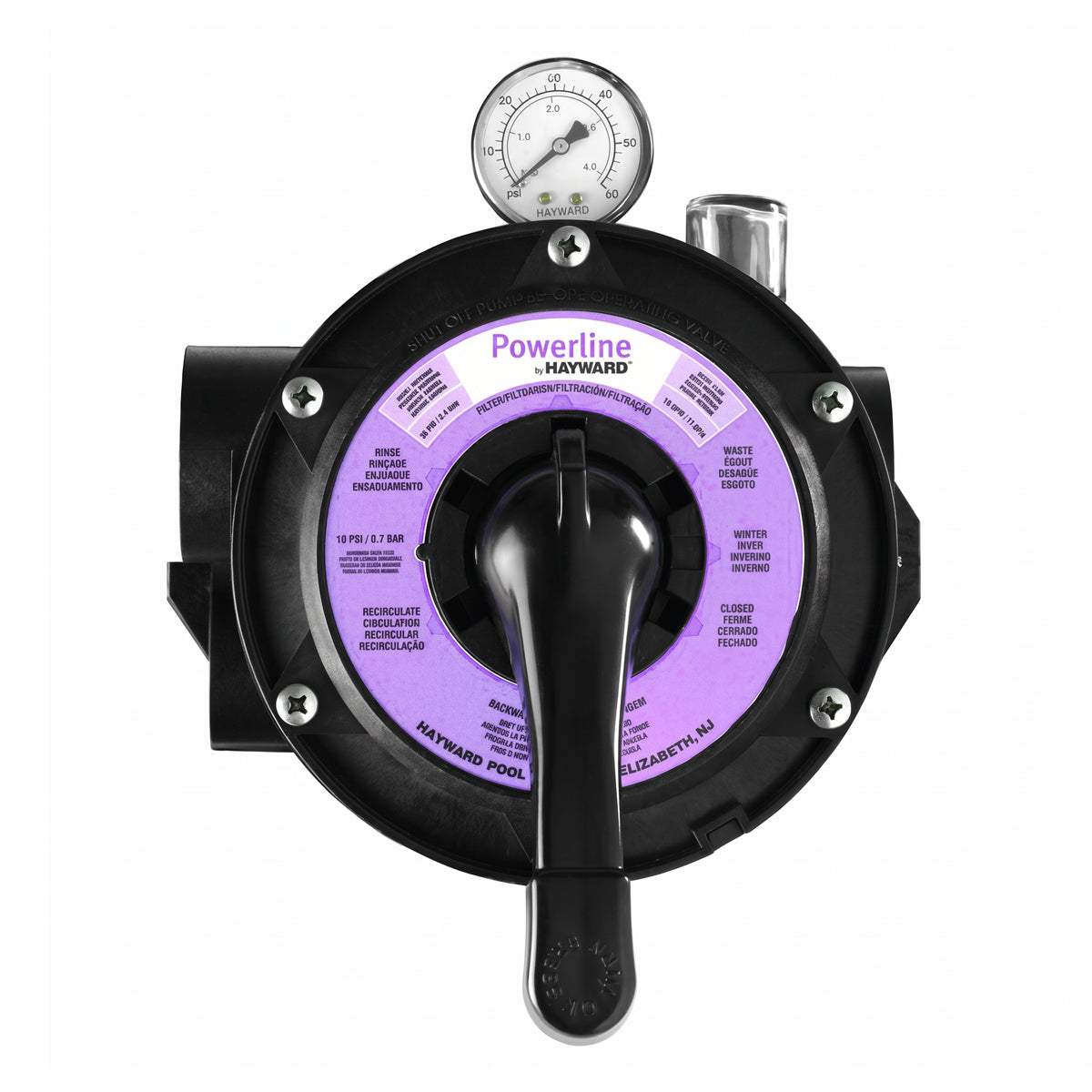

The VARI-FLO™ valve lets you select filter, backwash, rinse, waste, recirculate and closed functions. A neutral position is also available for winterizing.

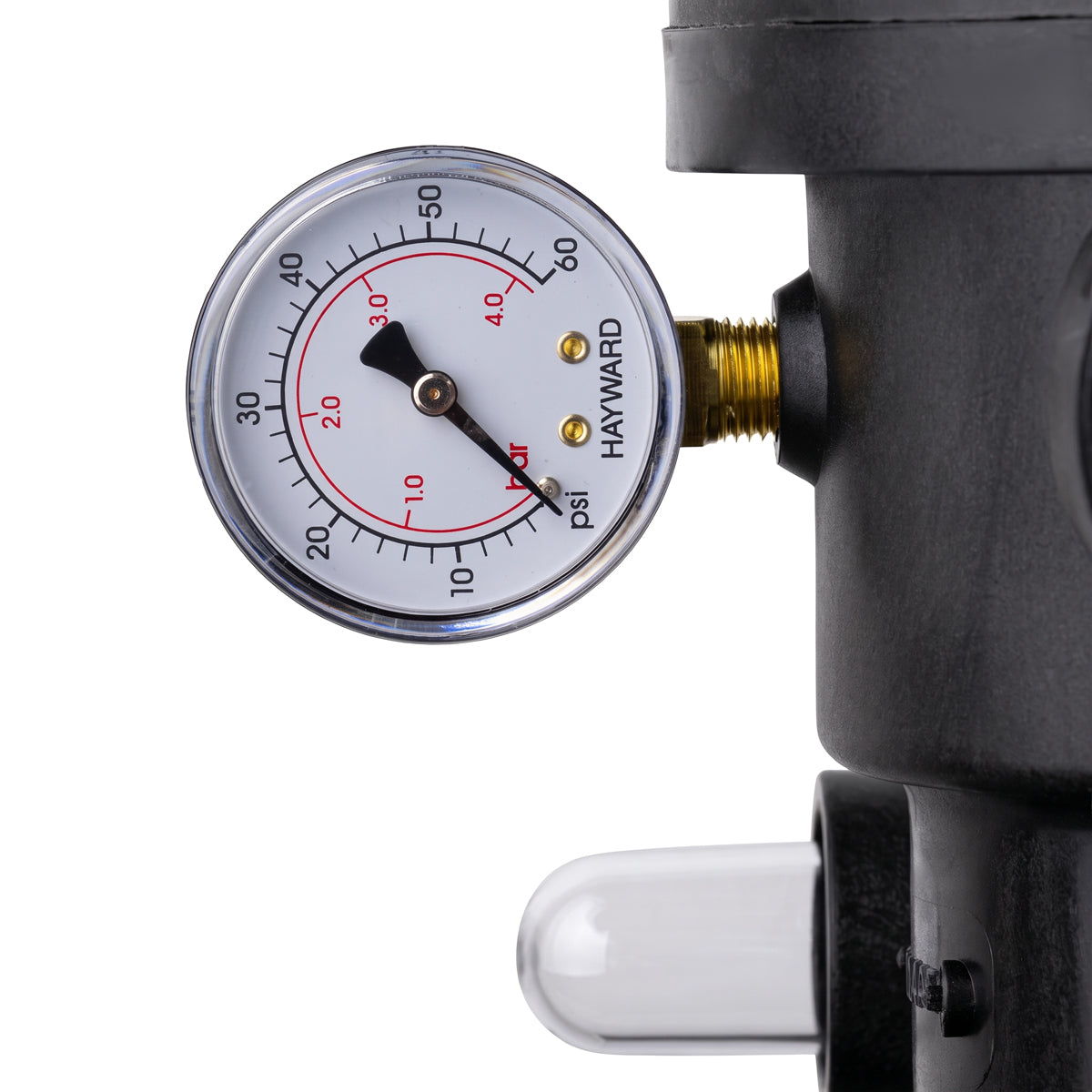

The pressure gauge allows you to monitor filter pressure, while the sight glass lets you observe the water during backwash. Always switch off the pump before changing the valve position.

Materials and water treatment compatibility

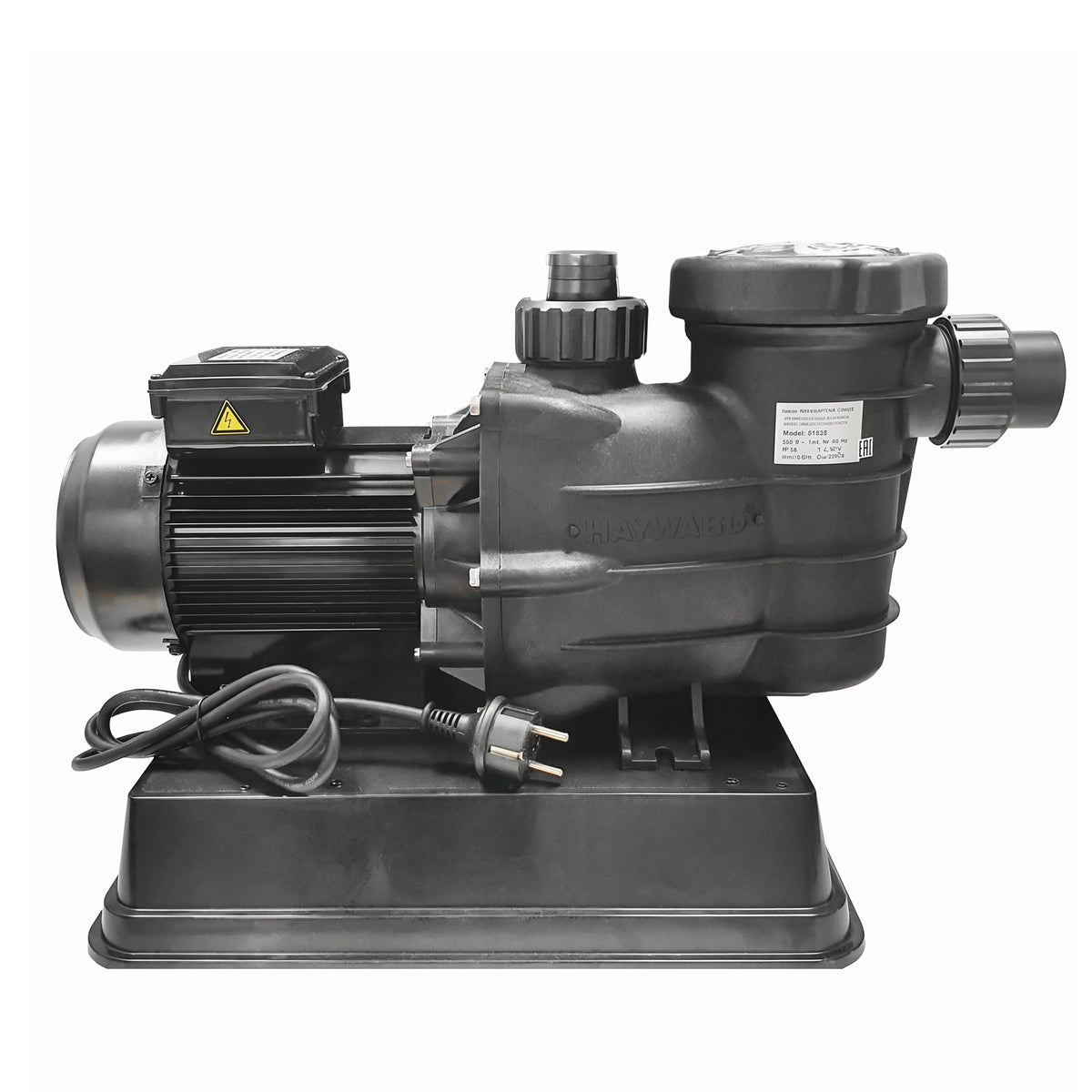

The filter tank is made of high-density blow-molded polyethylene. The pump uses a reinforced injected resin structure, resistant to corrosion.

The unit is compatible with salt chlorination, provided the manufacturer’s operating conditions and water parameters are respected.

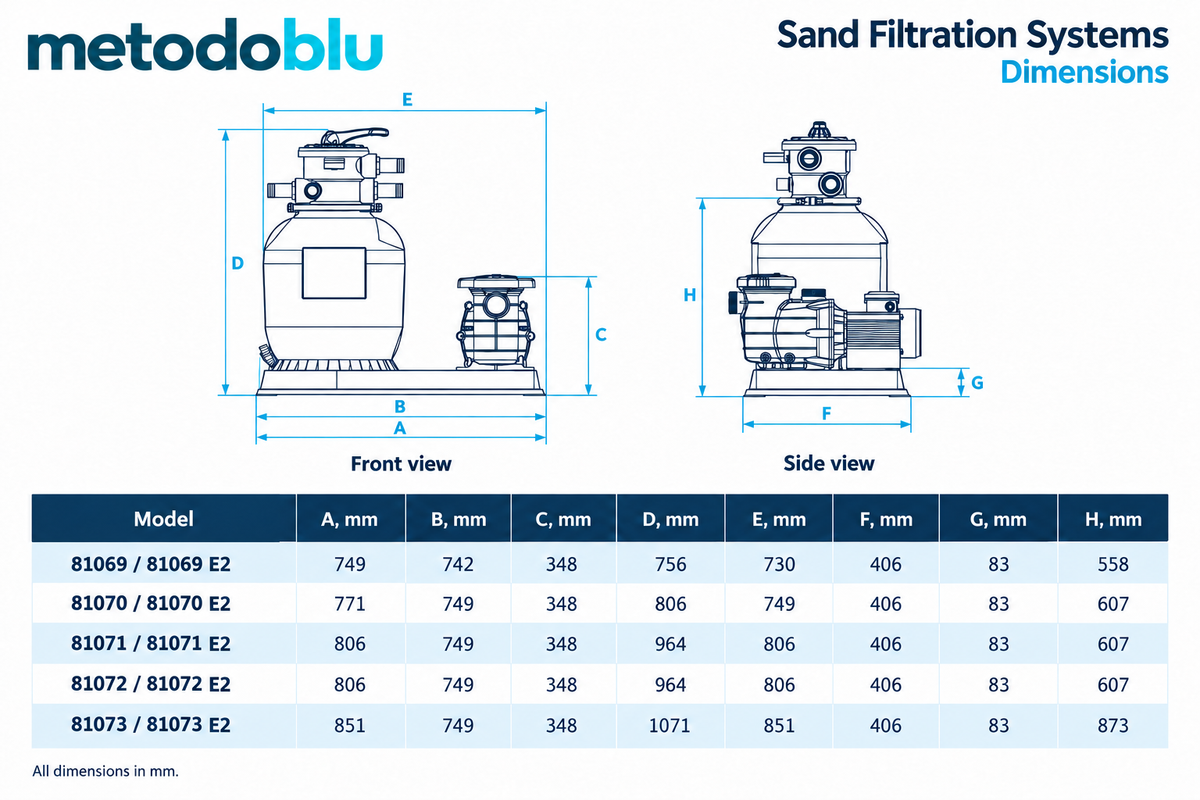

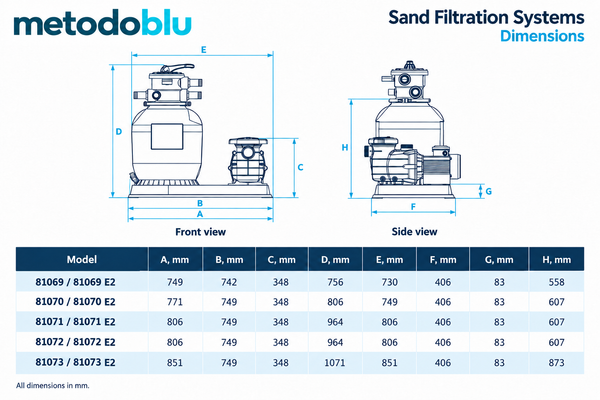

Dimensions, connections and installation

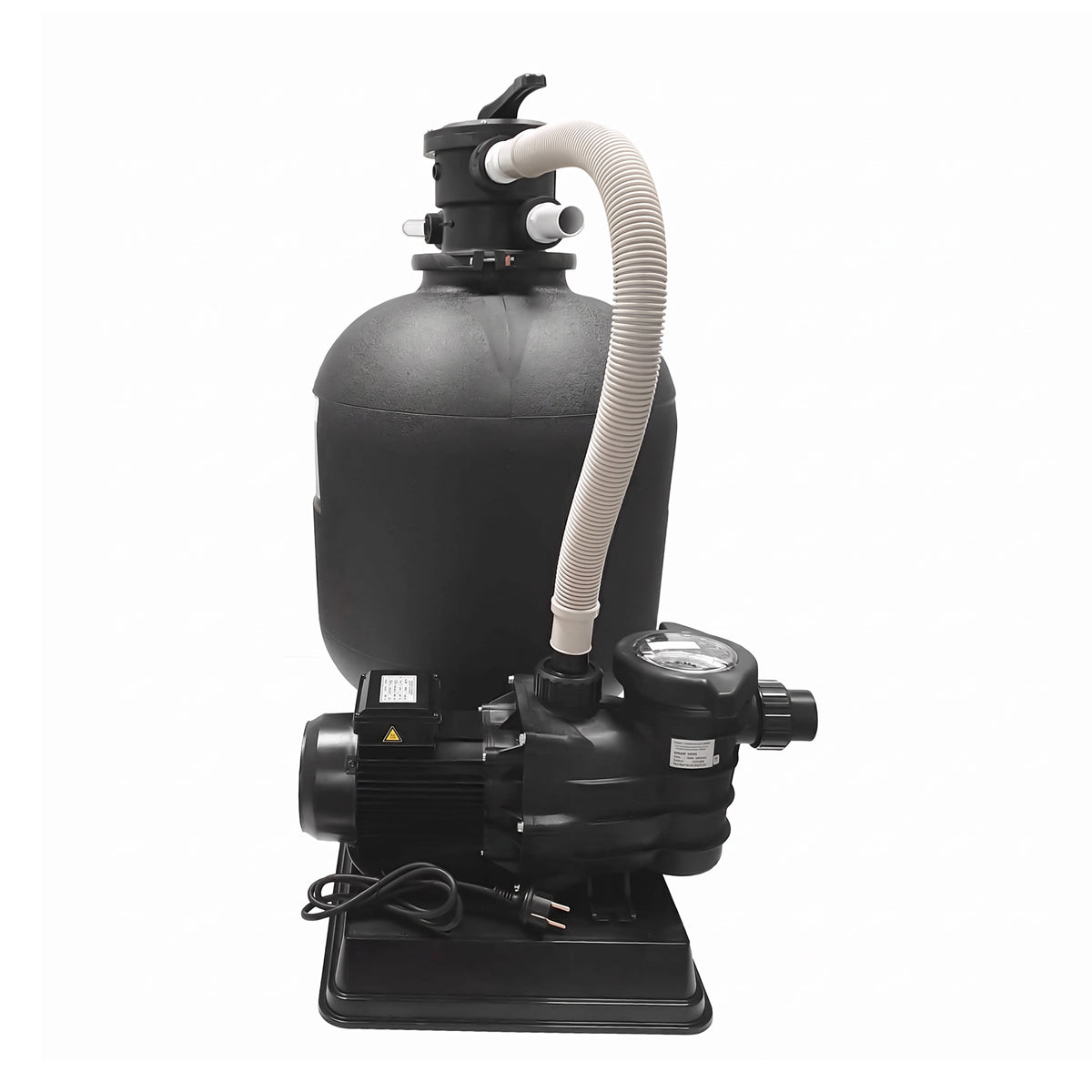

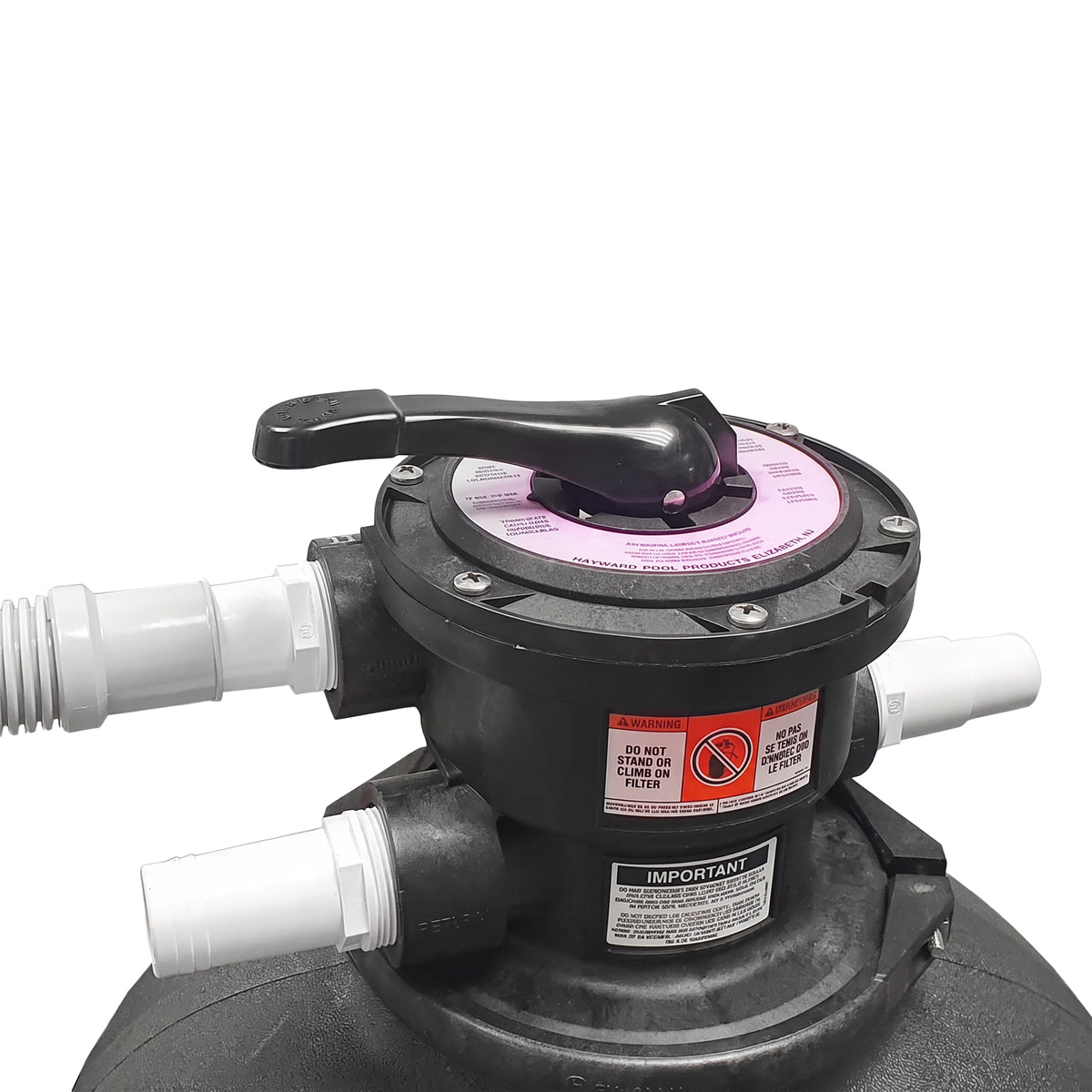

Pump and filter are mounted on a common base. Connections are 1½" with fittings for 38 mm hoses. Before purchase, check compatibility with the pool piping and any required adapters.

For installations on above-ground or in-ground pools, check the position of the unit relative to the water level and follow the manufacturer’s installation guidelines. Allow enough space to access the prefilter, valve and tank.

Compatibility and flow selection

The Powerline PL 81069 unit can be used on above-ground and in-ground pools with compatible plumbing. Sizing must consider pool volume, turnover times, piping and connected equipment.

The 4-hour turnover is a theoretical sizing reference, not the total daily runtime.

If in doubt, share the pool volume, pipe diameter, distance and height difference of the unit relative to the pool: we’ll help verify the suitability of the 5 m³/h version before purchase.

• Original Hayward product.
• Manufacturer warranty: 3 years.
• Compatibility support before purchase.
